File Submission

This guide is for anyone seeking guidance on submitting data to an Overture platform. By the end of this guide you will have completed a full data submission workflow: registering an analysis with Song and uploading its files with Score.

You will need Docker installed. We recommend using Docker Desktop; for more information, visit Docker's website.

Background: Submitting data to an Overture platform typically means data files (BAMs, CRAMs, VCFs, and similar) together with associated metadata that provides context, including donor information and descriptions of the data files. This guide focuses on submitting data to Song and Score using their command-line clients (CLIs).

Visual Summary:

Submission Overview

Prerequisites

Install and verify the following before you start.

1. WSL2 Setup (windows only)

Docker Desktop on Windows runs on WSL2, so configure it before installing Docker Desktop below:

Install WSL2
Use Ubuntu or another Linux distribution within WSL2
Enable Docker Desktop's WSL2 integration (Docker Desktop → Settings → Resources → WSL Integration)
Run all commands from a Bash terminal inside WSL2, not PowerShell or Command Prompt. To open one, search for your Linux distribution (e.g. "Ubuntu") in the Start menu.

2. Git installed

Download from git-scm.com if the command is not recognised.

3. Docker Desktop (28.0.0 or later)

macOS / Windows: Download from docker.com/products/docker-desktop
Linux: Follow the Docker Engine install guide

Once installed, open Docker Desktop → Settings → Resources and set:

CPUs: 4+ cores (8 recommended)
Memory: 8 GB minimum
Disk: 10 GB+ available

Please ensure docker --version and docker compose version both return version numbers, and Docker Desktop is running with 4+ CPUs and 8 GB+ memory allocated

Getting Started

This guide uses a dedicated demo environment: the docs-demo/file-transfer branch of the Overture Prelude repository. It is a self-contained Overture portal (Song, Score, Maestro, MinIO, Arranger, and Stage) preconfigured with a demo study and a genomicVariants analysis schema.

1. Clone the demo branch

git clone -b docs-demo/file-transfer https://github.com/overture-stack/prelude.git
cd prelude

2. Start the platform

make platform

caution

Ensure enough resources are allocated to Docker. We recommend a minimum CPU limit of 8, memory limit of 8 GB, swap of 2 GB, and virtual disk limit of 64 GB. You can access these settings by selecting the cog wheel at the top right of the Docker Desktop app and selecting Resources from the left panel. Ensure you are on Docker Desktop version 4.39.0 or higher.

make platform starts the stack empty so you can submit your own data. The setup step creates the demo study and registers the genomicVariants schema automatically.

What are we submitting?

A payload is a JSON file describing an analysis: its clinical metadata and the list of files to upload. The demo ships three sample payloads in data/payloads/ (DO001.json, DO002.json, DO003.json), each listing four small placeholder genomic files in data/files/.

Below is the payload for donor DO001. Its analysisType is genomicVariants, the schema registered during setup.

View the payload (DO001.json)

{
  "studyId": "demo",
  "analysisType": { "name": "genomicVariants" },
  "samples": [
    {
      "submitterSampleId": "DO001-SA01",
      "matchedNormalSubmitterSampleId": null,
      "sampleType": "Total DNA",
      "specimen": {
        "submitterSpecimenId": "DO001-SP01",
        "tumourNormalDesignation": "Tumour",
        "specimenType": "Primary tumour",
        "specimenTissueSource": "Breast"
      },
      "donor": {
        "submitterDonorId": "DO001",
        "gender": "Female"
      }
    }
  ],
  "files": [
    {
      "fileName": "DO001.snv.vcf.gz",
      "fileSize": 0,
      "fileMd5sum": "00000000000000000000000000000000",
      "fileType": "VCF",
      "fileAccess": "open",
      "dataType": "SNV"
    },
    {
      "fileName": "DO001.indel.vcf.gz",
      "fileSize": 0,
      "fileMd5sum": "00000000000000000000000000000000",
      "fileType": "VCF",
      "fileAccess": "open",
      "dataType": "INDEL"
    },
    {
      "fileName": "DO001.cnv.txt.gz",
      "fileSize": 0,
      "fileMd5sum": "00000000000000000000000000000000",
      "fileType": "TXT",
      "fileAccess": "open",
      "dataType": "CNV"
    },
    {
      "fileName": "DO001.sv.vcf.gz",
      "fileSize": 0,
      "fileMd5sum": "00000000000000000000000000000000",
      "fileType": "VCF",
      "fileAccess": "open",
      "dataType": "SV"
    }
  ],
  "experiment": {
    "sex": "female",
    "age_at_diagnosis": 55,
    "vital_status": "alive",
    "diagnosis_date": "2021-03-15",
    "disease_stage": "Stage II",
    "primary_diagnosis": "Breast Adenocarcinoma",
    "treatment_type": "Surgery",
    "treatment_response": "Complete Response"
  }
}

info

fileSize and fileMd5sum are placeholders in the committed payloads. The Song and Score clients compute the real values from disk at submission time; the payload files themselves are never modified.

Run the Song and Score clients

The clients run as Docker containers joined to the platform's internal network (overture-demo_platform-network) so they can reach the services by hostname. Authentication is disabled in this demo, so a fixed placeholder access token is used throughout.

1. Start the Song client

docker run -d -it --name song-client \
    -e CLIENT_ACCESS_TOKEN=68fb42b4-f1ed-4e8c-beab-3724b99fe528 \
    -e CLIENT_STUDY_ID=demo \
    -e CLIENT_SERVER_URL=http://song:8080 \
    --network overture-demo_platform-network \
    --platform linux/amd64 \
    --mount type=bind,source="$(pwd)/data/payloads",target=/payloads \
    --mount type=bind,source="$(pwd)/data",target=/data \
    ghcr.io/overture-stack/song-client:5131f6f8

Click here for a detailed breakdown

-d runs the container in detached mode, so it runs in the background
-it combines -i (interactive) and -t (allocate a pseudo-TTY), allowing you to interact with the container
-e CLIENT_ACCESS_TOKEN=... supplies the access token. Auth is disabled in this demo, so the value is accepted without being checked
-e CLIENT_STUDY_ID=demo sets the study the analysis is registered under; the demo study is named demo
-e CLIENT_SERVER_URL=http://song:8080 is the Song server the client talks to, reachable by hostname on the platform network
--network overture-demo_platform-network joins the container to the platform's internal network so song and score resolve
--platform linux/amd64 selects the image architecture
--mount ...data/payloads and --mount ...data make the payload JSON files and the data directory (files plus the generated manifest) available inside the container

2. Start the Score client

docker run -d -it --name score-client \
    -e ACCESSTOKEN=68fb42b4-f1ed-4e8c-beab-3724b99fe528 \
    -e STORAGE_URL=http://score:8087 \
    -e METADATA_URL=http://song:8080 \
    --network overture-demo_platform-network \
    --platform linux/amd64 \
    --mount type=bind,source="$(pwd)/data",target=/data \
    ghcr.io/overture-stack/score-client:ee758b91

Submit metadata to Song

Submit the payload with the Song client submit command:

docker exec song-client sh -c "sing submit -f /payloads/DO001.json"

Song validates the payload against the genomicVariants schema. On success it returns an analysisId:

{
  "analysisId": "4d9ed1c5-1053-4377-9ed1-c51053f3771f",
  "status": "OK"
}

An analysis ID is a randomly generated UUID, so yours will differ. Note it down; the next steps reference it.

info

What is an analysis? Once Song accepts and stores the metadata under an analysis ID, it is a Song analysis. To complete it, you upload its associated file data.

tip

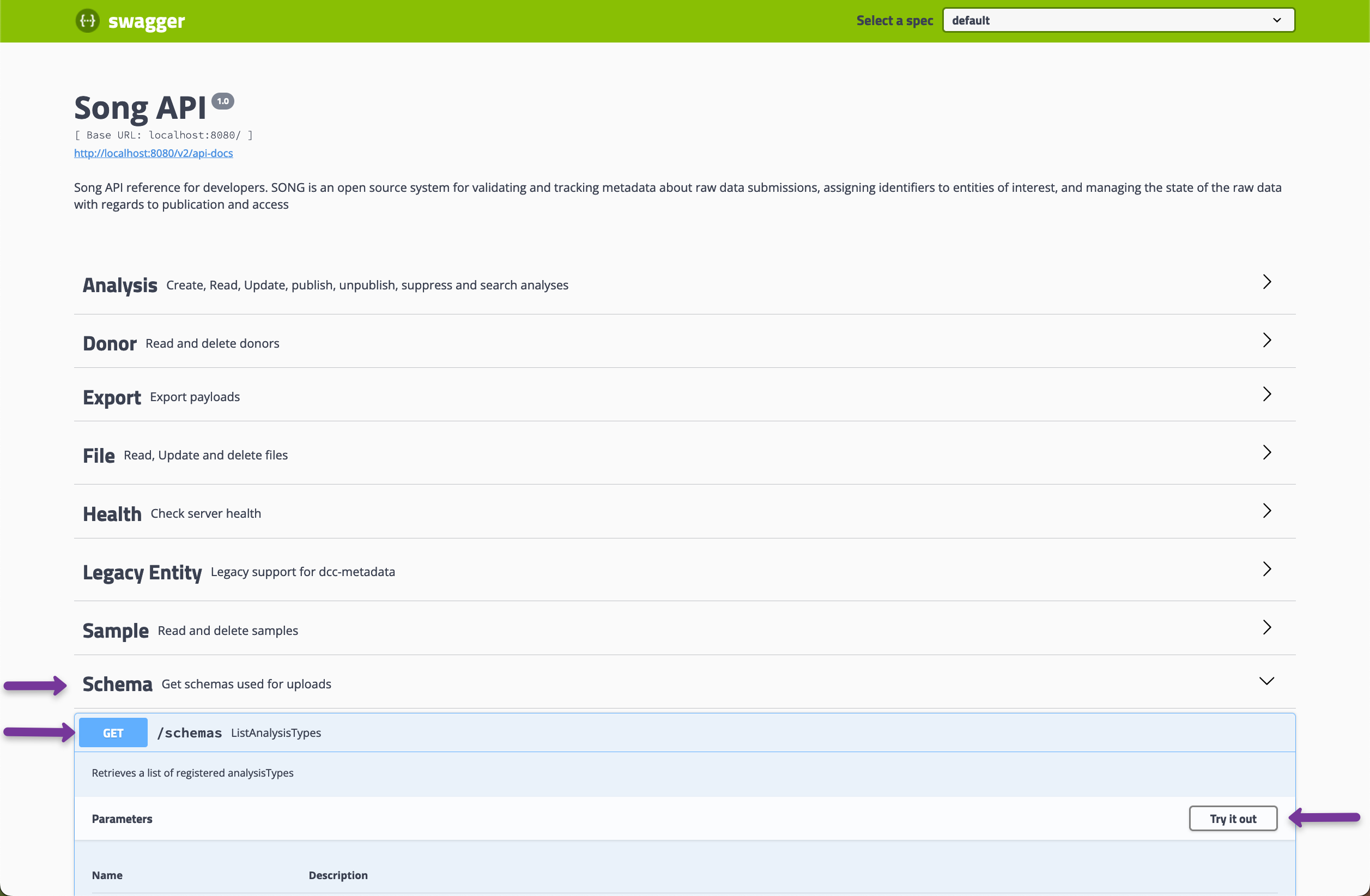

If Song rejects the payload with a schema.violation error, the metadata does not match the genomicVariants schema. You can inspect the registered schema from Song's Swagger UI at localhost:8080/swagger-ui.html under Schema, then GET /schemas.

Song Swagger

Generate a manifest

With your analysis ID, generate a manifest for file upload. The manifest links the analysis ID to the data files on disk and validates that the files match those declared in the metadata.

Replace {AnalysisId} with the ID returned above:

docker exec song-client sh -c "sing manifest -a {AnalysisId} -f /data/manifest.txt -d /data/files"

Expected response:

Wrote manifest file '/data/manifest.txt' for analysisId '4d9ed1c5-1053-4377-9ed1-c51053f3771f'

Upload files with Score

Use the Score client upload command to transfer the file data to object storage using the manifest:

docker exec score-client sh -c "score-client upload --manifest /data/manifest.txt"

Score handles the multipart upload protocol (initiate, upload parts, verify, finalise) for each file.

Publish the analysis

The final step sets the analysis state to PUBLISHED. Publishing signals Maestro to index the data, making it available in the portal.

Replace {AnalysisId} with your analysis ID:

docker exec song-client sh -c "sing publish -a {AnalysisId}"

Expected response:

{"message":"AnalysisId 4d9ed1c5-1053-4377-9ed1-c51053f3771f successfully published"}

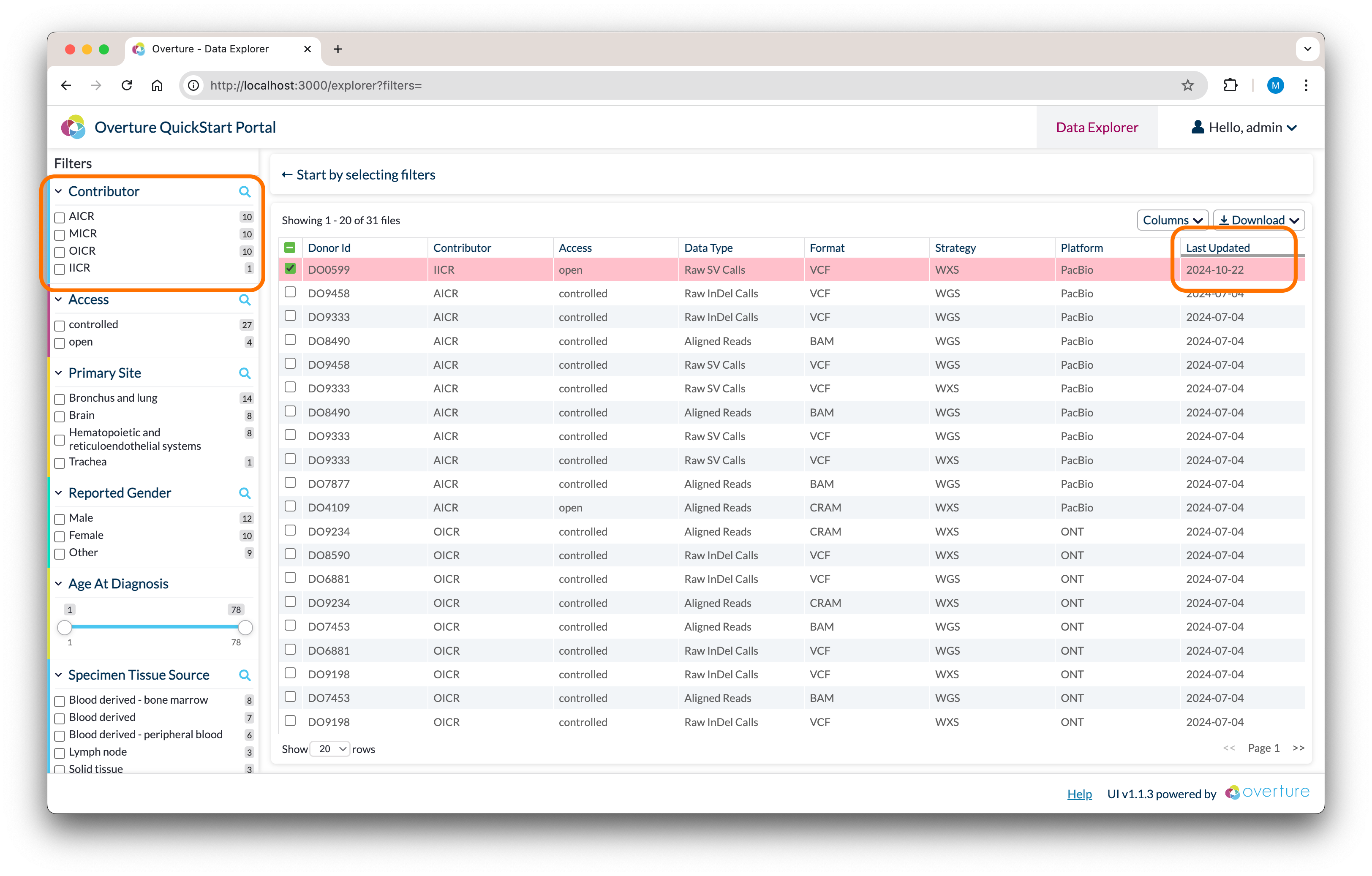

Maestro indexes the published analysis within a few seconds. Your uploaded data now appears in the portal at localhost:3000.

Success

Clean up

Remove the client containers when finished:

docker rm -f song-client score-client

tip

Help us make our guides better If you can't find what you're looking for please don't hesitate to reach out through our support page or our discussion forum.
